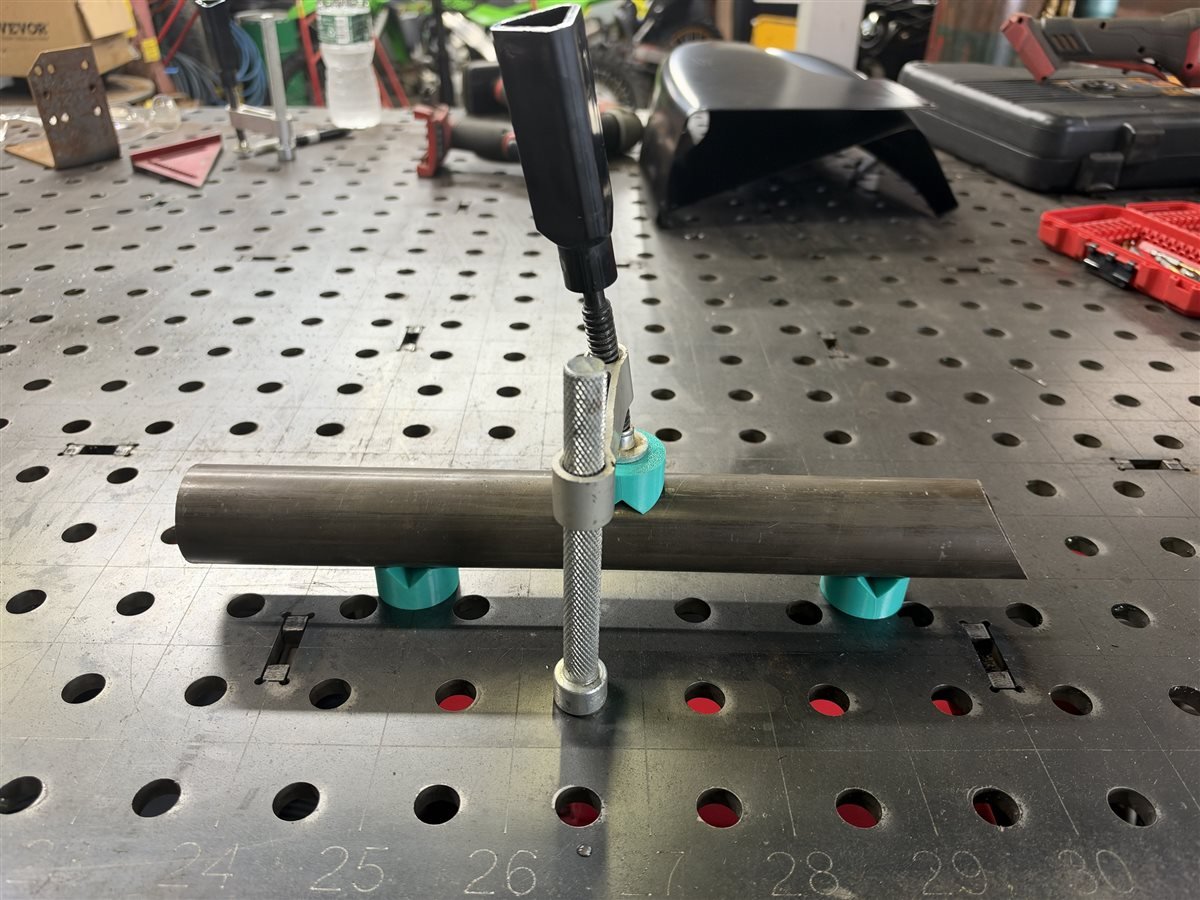

Three JOMAC magnetic V-blocks holding a round tube on a fixture table, one attached to the end of a clamp

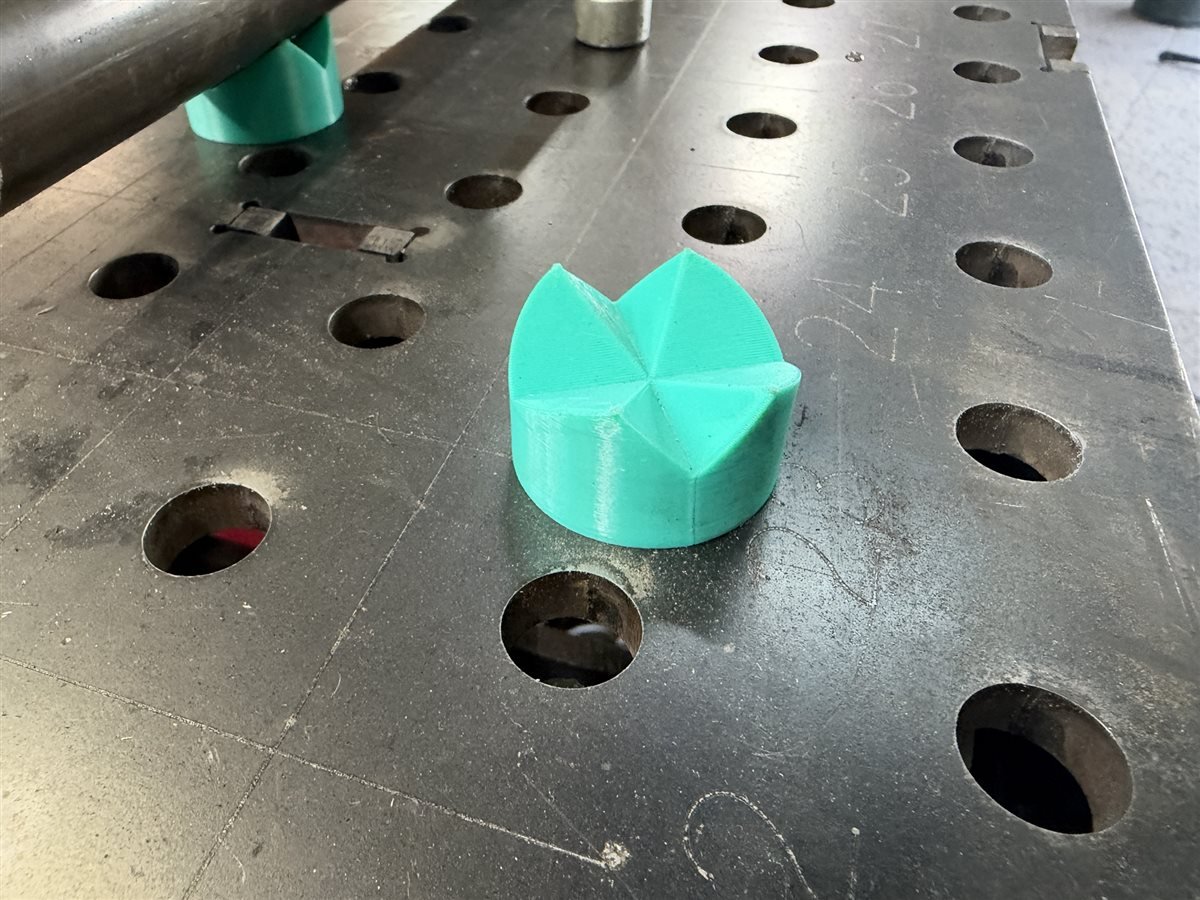

JOMAC magnetic V-block on a perforated fixture table showing its V-grooves

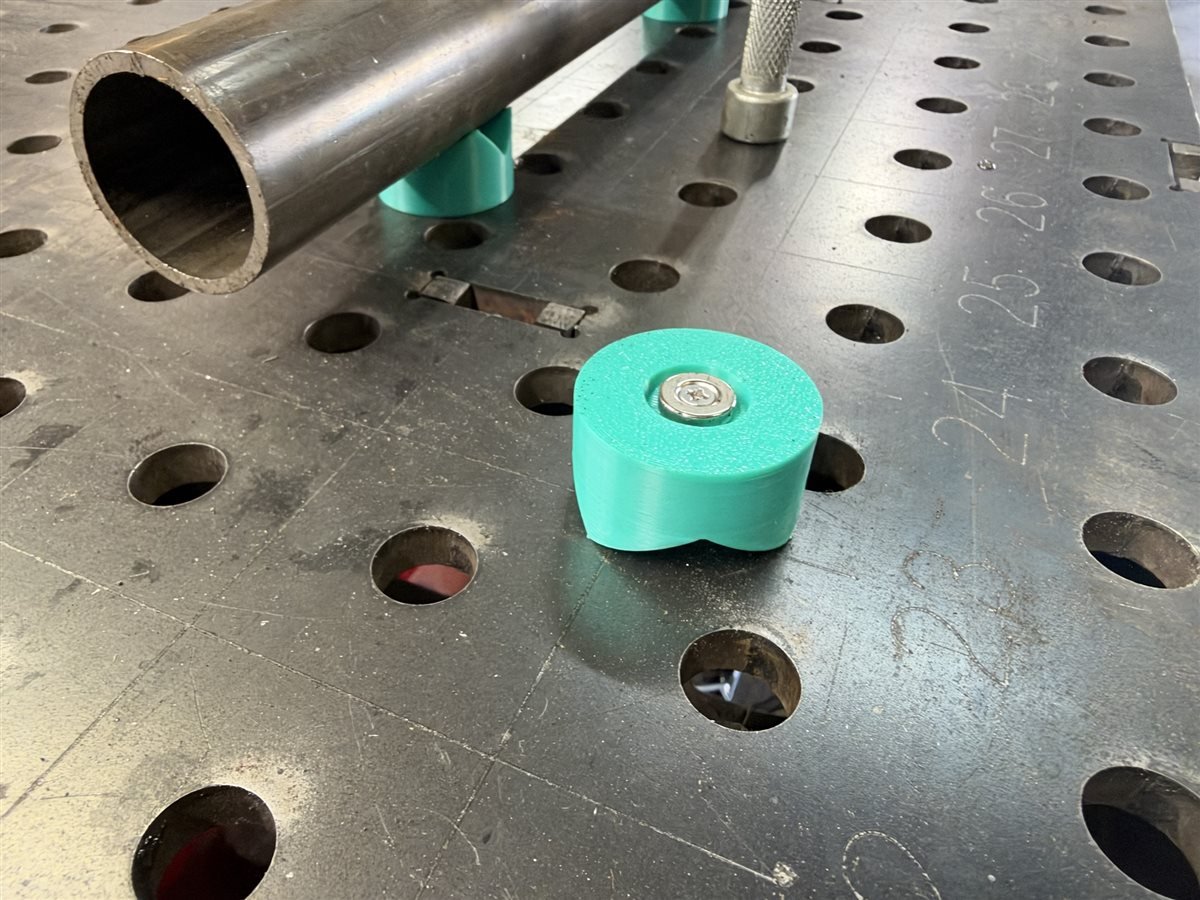

JOMAC magnetic V-block showing the magnet on its flat face

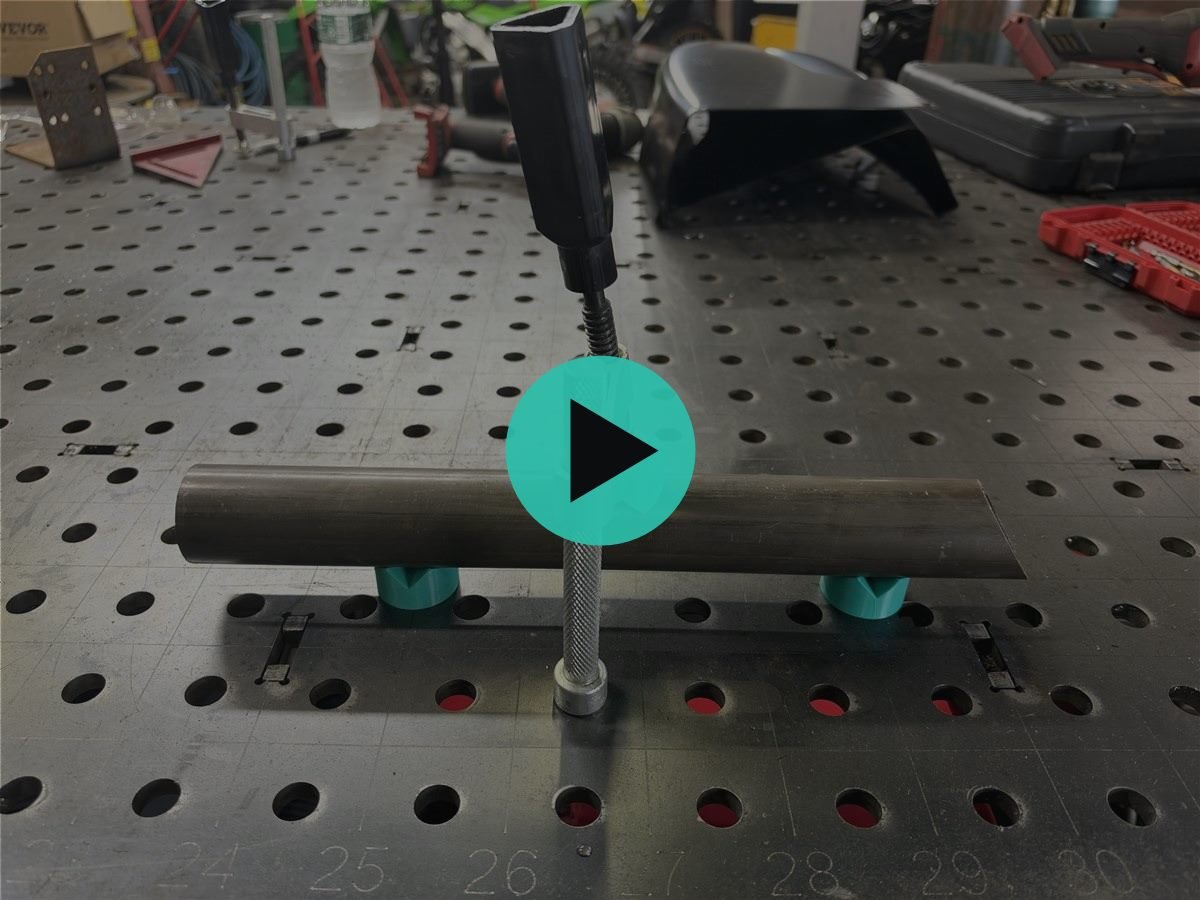

Play the video of the JOMAC magnetic V-blocks

Magnetic Multi V-Blocks

$40.00 per set of 4

Set of 4 magnetic V-blocks with 90° and 120° V-grooves. Compatible with 5/8" and 16mm fixture tables, and works on standard welding tables with the pin removed.

Category:

Magnetic V-blocks for positioning and fixturing round tubing, pipe and square stock for welding, fabrication and assembly. Sold as a set of 4.

Features

  • Set of 4 blocks per order.
  • Compatible with 5/8″ and 16mm fixture tables.
  • Removable magnetic locating pin for positioning on compatible fixture tables.
  • Also works on standard welding tables with the fixture pin removed.
  • 90° and 120° V-grooves.
  • 6 lb magnetic pull strength per block, from a neodymium magnet, for attaching to flat steel surfaces.
  • Each block is 1.5 x 1.5 x 1.5 in.
  • Holds round tubing, pipe and square stock.
  • Attaches to flat metal surfaces or to the ends of compatible clamps.
  • Other locating pin sizes available on request.

Used for

  • Welding fixture tables and modular fixturing systems
  • MIG and TIG welding
  • Exhaust and tubing fabrication
  • Automotive and off-road fabrication
  • Custom metalworking and fabrication shops

Made in USA.
